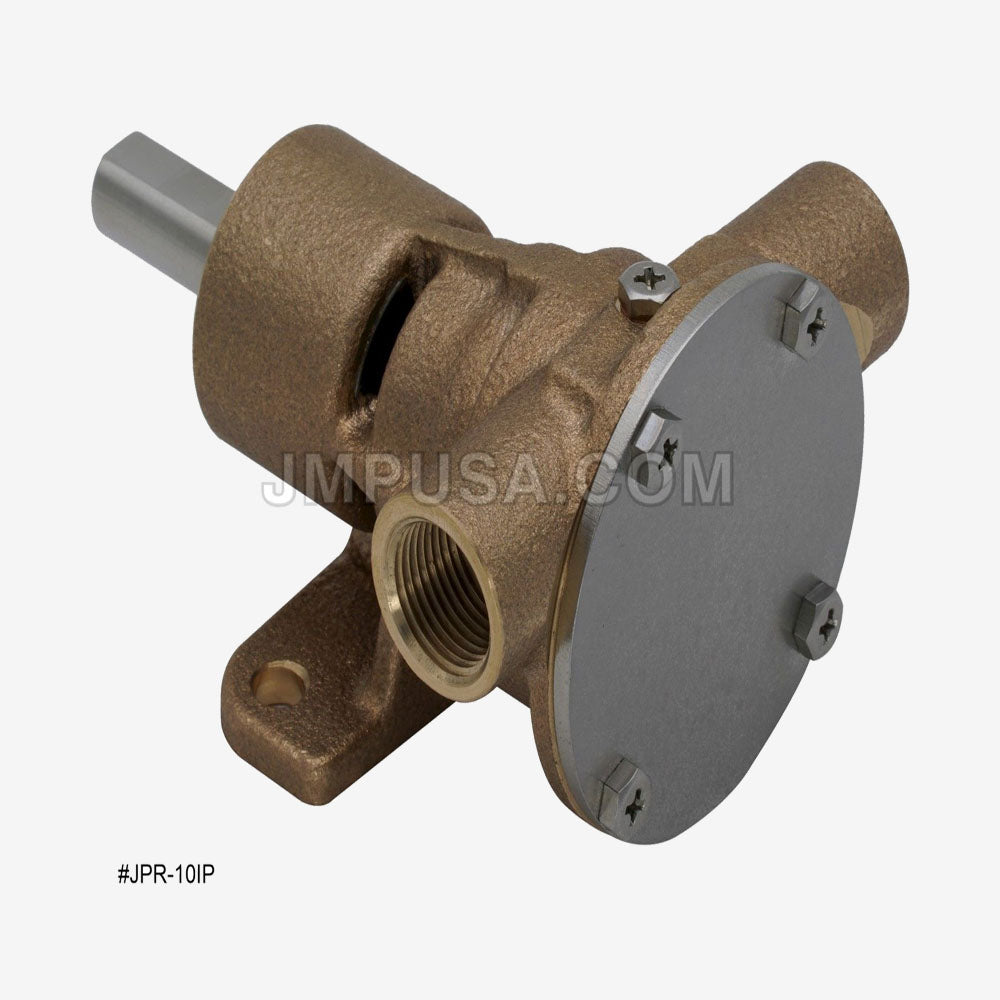

JPR-10IP JMP Marine MASE KUBOTA Impeller Pedestal Pump – Replaces Johnson 10-24569-01

JPR-10IP JMP Marine MASE KUBOTA Impeller Pedestal Pump – Replaces Johnson 10-24569-01

$270.41 USD
$270.41 USD
Sale Sold out
Shipping calculated at checkout.

The JPR-10IP JMP Marine MASE KUBOTA Pump is a high-performance, multi-purpose impeller pedestal pump designed for small generators. This pump is a direct replacement for Johnson Pump part number 10-24569-01 and features marine-grade construction for long-lasting durability in harsh conditions.

It includes BSP threaded ports (PF 3/8-19), a strong bronze housing, and a high-quality flexible impeller for optimal flow performance. Unlike the original, this pump includes internal upgrades for improved quality and operation. It's ideal for marine professionals seeking long-term reliability and compatibility with MASE KUBOTA generator engines.

  • Direct replacement for Johnson 10-24569-01
  • Durable bronze body – heavy-duty marine grade casting
  • Long-life flexible impeller included
  • Marine-grade, non-magnetic shaft
  • Internally improved design (not compatible with OEM parts)
  • Easy maintenance with spare part kits
  • Trusted JMP Marine performance

  • Replaces: Johnson Pump 10-24569-01
  • Engine Application: MASE KUBOTA Multi-Purpose Generators
  • Impeller Kit: JMP 7000-01K
  • Major Service Kit: JSK0165 (Sold Separately)
  • Minor Service Kit: JSM0165 (Sold Separately)
  • Port Type: BSP Threaded (PF 3/8-19)

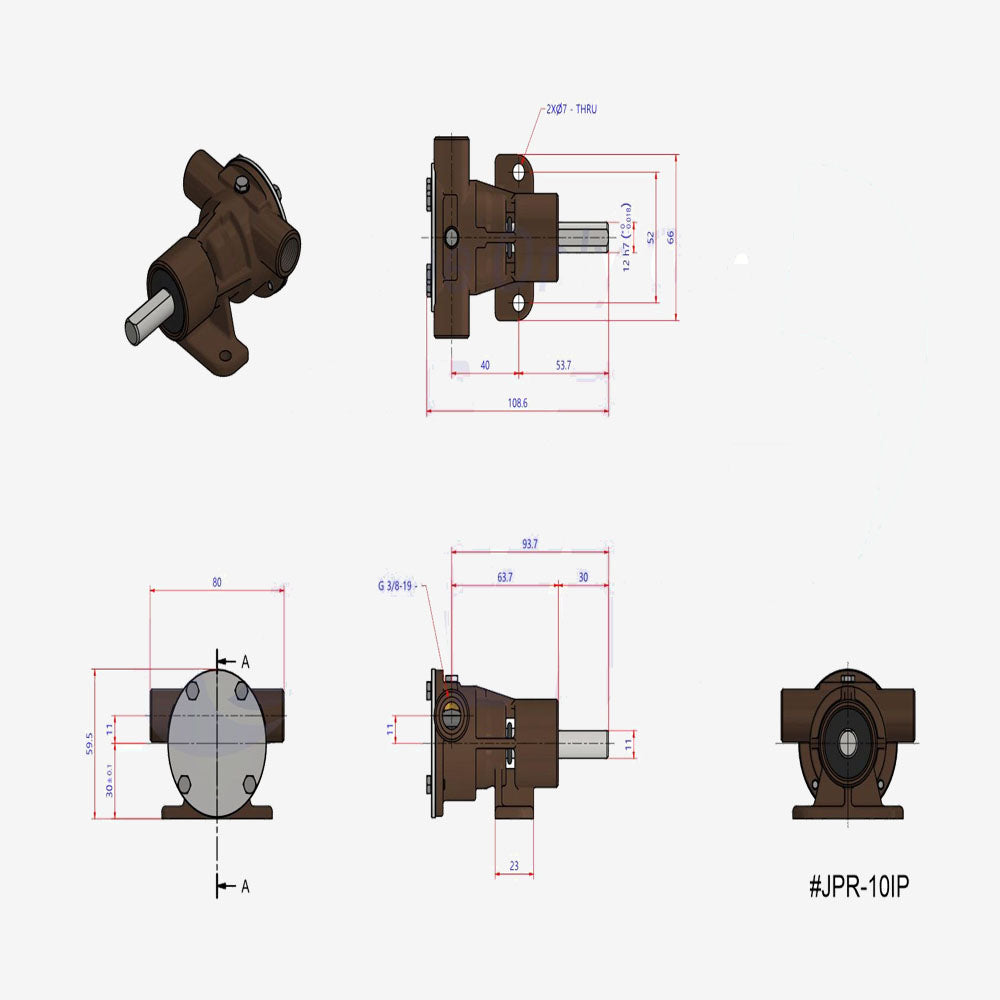

  • Dimensions: 109mm (L) x 80mm (W) x 59.5mm (H)
  • Weight: Approx. 2.2 lbs / 1 kg
  • Internal Compatibility: Not compatible with OEM internals
