JPR-JD25UH JMP Marine John Deere Replacement Raw Water Pump | Replaces DZ116559, RE535944, Johnson 10-24753-01
JPR-JD25UH JMP Marine John Deere Replacement Raw Water Pump | Replaces DZ116559, RE535944, Johnson 10-24753-01
Couldn't load pickup availability

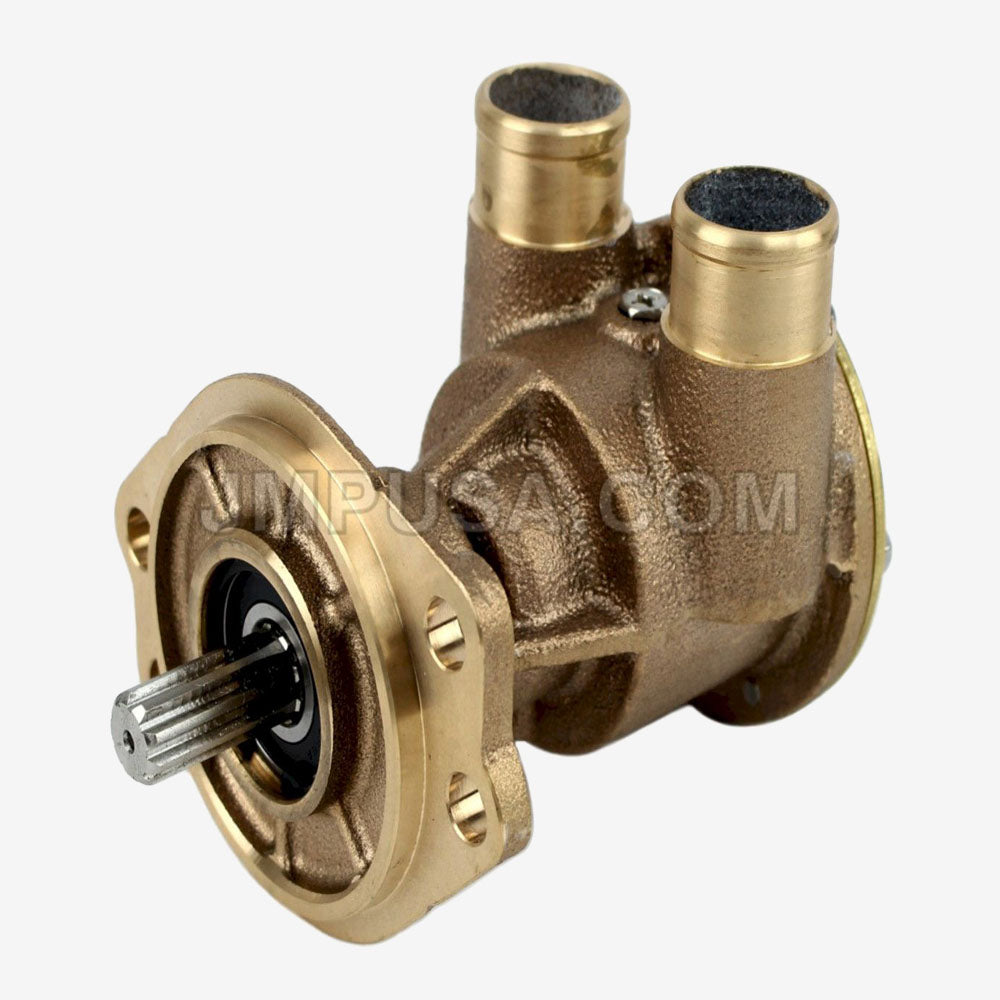

The JPR-JD25UH JMP Marine Raw Water Pump is a premium aftermarket replacement designed specifically for John Deere marine engines and select Kohler gensets. This heavy-duty seawater pump replaces multiple OEM parts including John Deere DZ116559, RE535944, Johnson 10-24753-01, and Onan 132-0435.
Built for high performance in demanding marine environments, it features a corrosion-resistant marine-grade casting, a 3X Series non-magnetic shaft, and a high-capacity flexible impeller. Engineered with upgraded internal components for improved flow, seal life, and durability over OEM versions.
Ideal for maintaining peak cooling efficiency in John Deere and Kohler-powered marine applications. Trusted by boat owners and marine service professionals worldwide.
- High-performance flexible impeller with improved flow
- Heavy-duty marine grade bronze casting
- Non-magnetic 3X Series marine-grade shaft
- Spline drive (9 splines) for secure engine connection
- Upgraded internals for superior durability and performance
- Easy maintenance with optional major & minor service kits
- Replaces John Deere: DZ116559, RE535944, RE525563, RE503068
- Replaces Johnson Pump: 10-24753-01, 10-24907-01 (F7B-9)
- Replaces Onan: 132-0435
- Engine Compatibility: John Deere 3029, 4045DFM50/70, 4045TFM50/75/85, 6068SFM50, 6068TFM50/75/76
- Kohler Compatibility: 40E02/33EF02, 65E02/55EF02, 30E02/20EF02, 99E02/80LF02
- Impeller Kit: JMP 7400-01K
- Major Service Kit: JSK0076 (*sold separately)
- Minor Service Kit: JSM0024 (*sold separately)
- Port Type: Hose Connection Ø32mm
- Shaft Type: 9-spline Spline Drive
- Weight: Approx. 6.25 lbs (3.85 kg)
- Internal Parts Compatibility: Not compatible with OEM internals (upgraded design)
