JPR-S7632 JMP Marine Caterpillar Replacement Engine Cooling Raw Water Pump
JPR-S7632 JMP Marine Caterpillar Replacement Engine Cooling Raw Water Pump
Couldn't load pickup availability

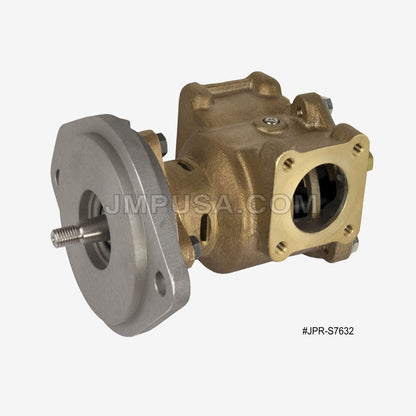

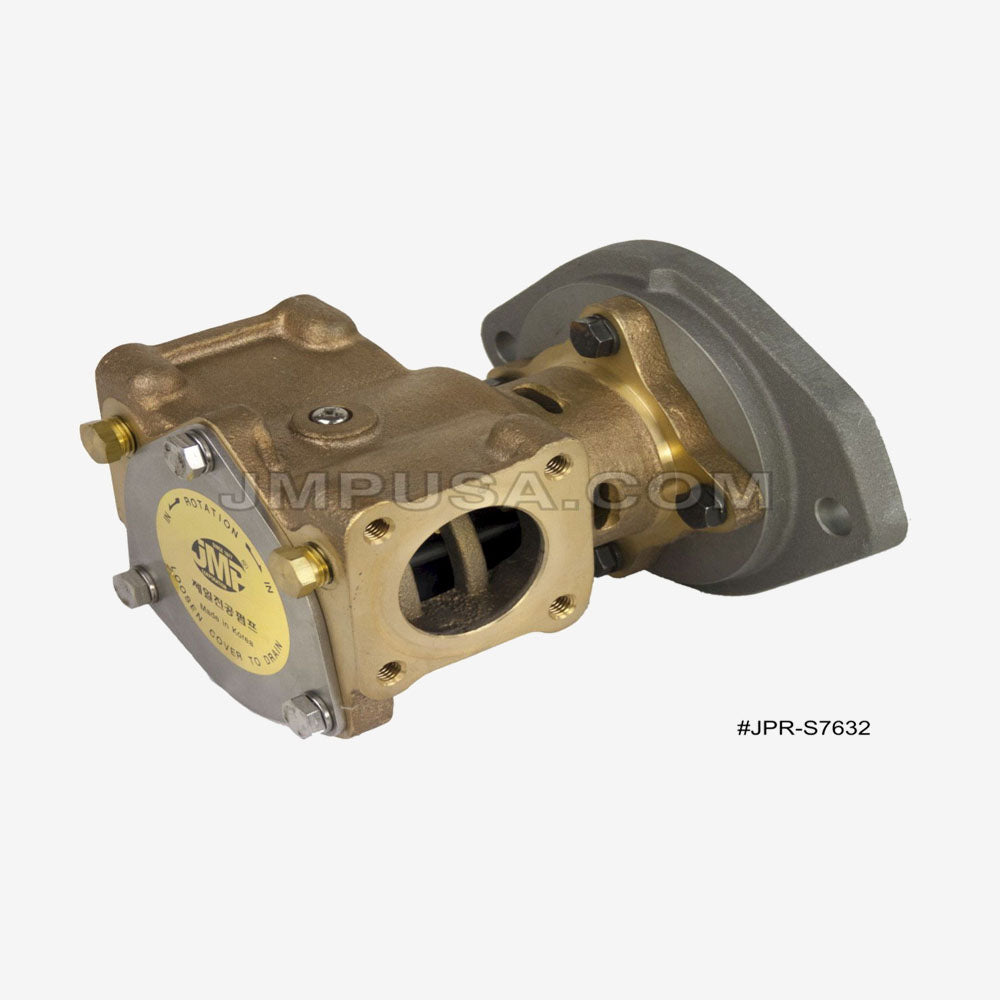

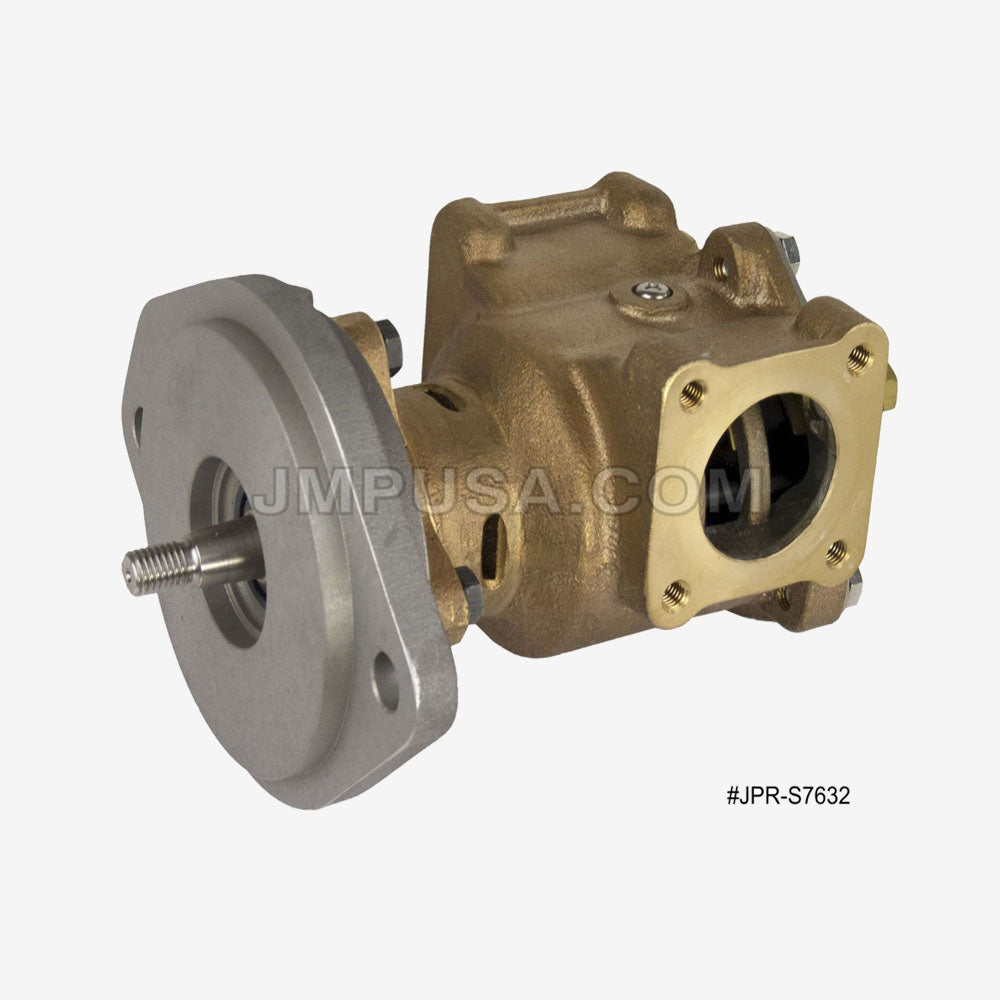

The JPR-S7632 JMP Marine Raw Water Pump is a direct-fit, high-performance replacement for multiple Caterpillar (CAT) marine diesel engines, including 3116, 3126, 3126B, C7, and C9. This pump replaces numerous OEM part numbers, including 4P7168, 113-1109, 152-8392, 167-4252, 170-6116, 353-7979, and Sherwood models such as P1710, P1726, P1732 series.
Manufactured from heavy-duty marine-grade materials, this seawater pump is engineered with an upgraded impeller, wear plate, cam, and shaft for better quality, performance, and longevity. It is NOT internally compatible with OEM parts — it’s better.
Note: Ships only within the USA.
- 100% Plug & Play Replacement
- Universal Fit for Multiple CAT Engine Models
- Heavy Duty Marine Grade Casting
- Marine Grade Shaft (3X Series Non-Magnetic)
- O-Ring End Cover Packing
- Spline Drive Shaft – Not Key Drive
- High Performance JMP Impeller (7608-01K)
- High Volume Flow & Fast Flow Velocity
✅ Compatible Engine Models:
- Caterpillar 3116, 3126, 3126B, C7, C9
✅ Replaces OEM Pump Part Numbers:
- CAT: 4P7168, 113-1109, 152-8392, 167-4252, 170-6116, 353-7979
- Sherwood: P1710, P1710-01, P1710-02, P1710-04, P1710A, P1710C, P1710X, P1726, P1726X, P1732-01, P1732-02, P1732A, P1732C, P1732X
✅ Impeller Used: JMP 7608-01K
✅ Port Type: 1.75" Flange
✅ Pump Weight: Approx. 14.00 LBS (6.36 KG)
✅ Service Kits:
- Major Kit (All Internals): JSK0072 (Sold Separately)
- Minor Kit: JSM0002 (Sold Separately)
Note: Internals are upgraded for performance; not compatible with original CAT or Sherwood internal parts.
