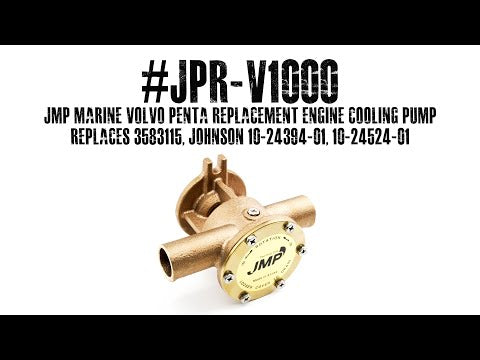

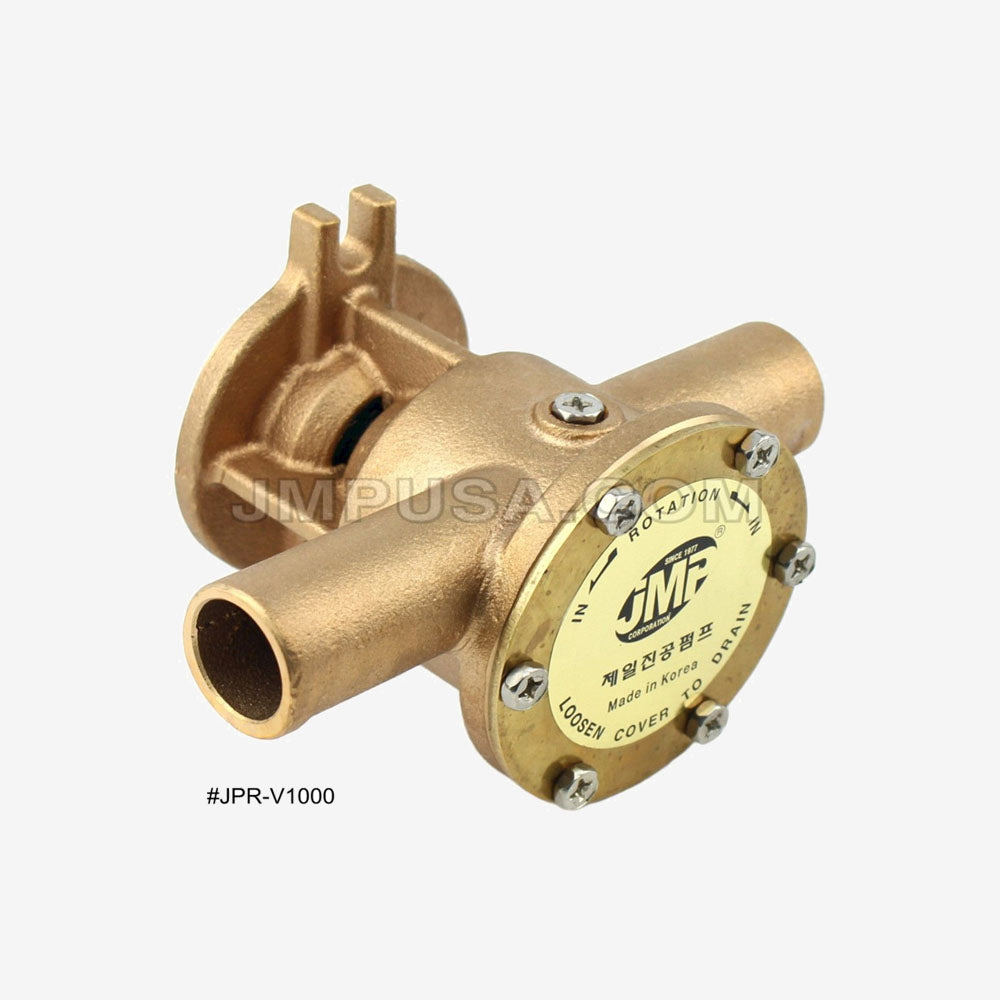

JPR‑V1000 JMP Marine Volvo Penta Replacement Seawater Pump – Replaces 3583115 & 10‑24394‑01

JPR‑V1000 JMP Marine Volvo Penta Replacement Seawater Pump – Replaces 3583115 & 10‑24394‑01

$562.93 USD
$638.25 USD $562.93 USD
Sale Sold out
Shipping calculated at checkout.

The JPR‑V1000 by JMP Marine is a premium seawater cooling pump built to replace OEM units in Volvo Penta and Johnson applications. Ideal for AD31/41/43, TAMD31/41/42, and other diesel engines, this robust pump delivers improved performance and durability through parts upgrades and marine-grade materials.

Featuring durable ball bearings and a mechanical seal, it provides reliable, smooth operation. The plug‑and‑play design ensures easy drop‑in replacement without modification.

  • Direct OEM Replacement for Volvo Penta 3583115 & Johnson 10‑24394‑01
  • Heavy-Duty Marine-Grade Bronze Casting
  • Marine Grade 3X Series Non-Magnetic Shaft
  • Durable Double Ball Bearing for Smooth Operation
  • Mechanical Seal for Long-Term Reliability
  • O-Ring Sealed End Cover – No Gasket Required
  • High-Performance Flexible Impeller (JMP 7400‑01K)
  • Plug & Play Ready

  • SKU: JPR‑V1000
  • Replaces: Volvo 3583115, 3581558, 860629; Johnson 10‑24394‑01, 10‑24524‑01
  • Used on Engines: AD31/41/43, TAMD31/41/42, KAD32/42/43/44, KAMD42/43/44, MD31, TMD31/41
  • Port Type: 1" Hose
  • Impeller: JMP 7400‑01K
  • Pump Size (L×W×H): 129 × 158 × 90 mm
  • Weight: Approx. 6.0 lbs (2.73 kg)
  • Internal Compatibility: Not OEM – upgraded ball-bearing shaft and seals
  • Major Service Kit: JSK0085 (*Sold Separately)
  • Minor Service Kit: JSM0030 (*Sold Separately)
